Independent Component Analysis (ICA)

class: center, middle, inverse, title-slide

.title[
# Independent Component Analysis (ICA)
]
.author[
### Mikhail Dozmorov
]
.institute[
### Virginia Commonwealth University
]
.date[
### 2025-12-01
]

---

<style>
.large { font-size: 130%; }
.small { font-size: 70%; }
.tiny { font-size: 40%; }
</style>

## ICA - Independent Component Analysis

- PCA assumes multivariate normally distributed data — gene expression data are usually **super-Gaussian** (heavier tails, not Normal)

- ICA models observations as a **linear combination of latent variables (components)** that are **as statistically independent as possible**

- Analogy: multiple sound sources mixed together — ICA tries to “unmix” them

---
## ICA - Independent Component Analysis

- ICA performs a **linear rotation** of data like PCA, but recovers **independent**, not maximally variable, components

- In RNA-seq, ICA components often correspond to **transcriptional modules** representing biological processes

.small[ Hyvärinen, Aapo, and Erkki Oja. "Independent component analysis: algorithms and applications." Neural networks 13, no. 4-5 (2000): 411-430. https://doi.org/10.1016/S0893-6080(00)00026-5 ]

---

## ICA vs PCA – Conceptual Difference

| Aspect | PCA | ICA |
|--------|-----|-----|
| Goal | Maximize variance | Maximize statistical independence |
| Components | Orthogonal | Independent (not necessarily orthogonal) |
| Suitable for | Gaussian data | Non-Gaussian (super-Gaussian) data |
| Interpretation | Global variation patterns | Underlying sources/processes |

- ICA can reveal **hidden biological signals** not captured by PCA

.small[ Engreitz, Jesse M., Bernie J. Daigle Jr, Jonathan J. Marshall, and Russ B. Altman. "Independent component analysis: mining microarray data for fundamental human gene expression modules." Journal of biomedical informatics 43, no. 6 (2010): 932-944. https://doi.org/10.1016/j.jbi.2010.07.001]

---
## ICA - Model Formulation

- `$X$` — an `$m \times n$` matrix of `$n$` genes and `$m$` experiments

- ICA decomposes `$X$` as:
  `$$X = AS$$`

- `$A$` — an `$m \times k$` **mixing matrix**

- `$S$` — a `$k \times n$` **source matrix**

- `$k$` — user-specified number of independent components (`$k \leq \min(m, n)$`)

- Preprocessing: filter, center, scale (as for PCA)

<!--
## ICA - Model Formulation

---
## ICA Components and Interpretation

- Rows of `$S$` (source matrix) are **independent components**

- Gene weights in each component reflect **independent random variables**

- Genes with strong weights in the same component likely participate in the same biological process

- Columns of `$A$` show the **expression strength of each component** across samples

.small[ fastICA R package: https://CRAN.R-project.org/package=fastICA  ]

---
## ICA in Practice

- The **source matrix `$S$`**: interpreted biologically by studying the genes contributing to each component

- The **mixing matrix `$A$`**: associate components with sample features (e.g., clinical or molecular characteristics)

- Identify correlations between **independent components and phenotypes**

.small[ MineICA package: https://bioconductor.org/packages/MineICA/ ]

---

## Example Workflow in R

```r
library(fastICA)

# Example data: expression matrix (genes x samples)
set.seed(123)
expr <- matrix(rnorm(1000), nrow = 100, ncol = 10)

# Run ICA with 3 components
ica_res <- fastICA(expr, n.comp = 3)

# Matrices
S <- ica_res$S  # Source matrix (independent components)
A <- ica_res$A  # Mixing matrix
```

- Inspect top genes contributing to each component

- Plot sample scores (A) colored by phenotype

---
## ICA Demo Using *iris* Dataset

We illustrate Independent Component Analysis (ICA) using the well-known *iris* dataset.

We use only the **numeric columns** (4 flower measurements) and treat each **row as a sample**.

``` r
library(fastICA)

# Use only numeric variables from iris
data(iris)
X <- as.matrix(iris[, 1:4])   # 150 samples × 4 features

dim(X)
```

```
## [1] 150   4
```

---
## Running ICA

We extract **3 independent components**.

``` r
set.seed(123)
ica_res <- fastICA(X, n.comp = 3)
S <- ica_res$S   # Independent components (sources)
A <- ica_res$A   # Mixing matrix

dim(S)
```

```
## [1] 150   3
```

``` r
dim(A)
```

```
## [1] 3 4
```

In ICA, rows of **S** describe how each independent signal varies across samples.
Rows of **A** tell us how each feature loads onto the independent components.

---
## Plotting ICA Components

Color the samples by species to visualize whether ICA captures class structure.

``` r
library(ggplot2)

df_ica <- data.frame(
  IC1 = S[,1],
  IC2 = S[,2],
  Species = iris$Species
)
head(df_ica)
```

```
##         IC1        IC2 Species
## 1 -1.395258  0.4149757  setosa
## 2 -1.336105 -0.7872977  setosa
## 3 -1.330866 -0.3146663  setosa
## 4 -1.202928 -0.5861406  setosa
## 5 -1.367819  0.6446875  setosa
## 6 -1.246761  1.5260826  setosa
```

---

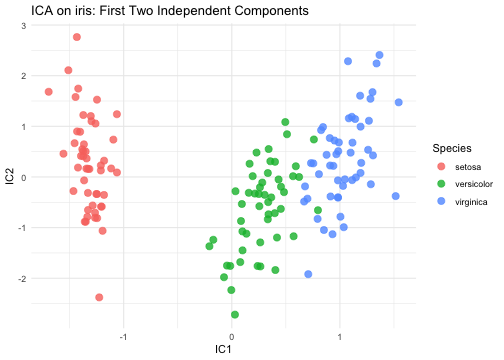

## Plotting ICA Components

Color the samples by species - ICA captures class structure.

``` r
ggplot(df_ica, aes(IC1, IC2, color = Species)) +
  geom_point(size = 3, alpha = 0.8) +
  theme_minimal() +
  labs(title = "ICA on iris: First Two Independent Components")
```

![](ICA_files/figure-html/unnamed-chunk-5-1.png)

---
## Inspecting Feature Loadings

The columns of **A** correspond to the independent components.

We inspect how the original measurements contribute to each component.

``` r
colnames(X)
```

```
## [1] "Sepal.Length" "Sepal.Width"  "Petal.Length" "Petal.Width"
```

``` r
A
```

```
##            [,1]         [,2]        [,3]       [,4]
## [1,]  0.6585008 -0.203936026  1.73801839 0.74439307
## [2,]  0.2418689  0.380352924  0.05743742 0.09667760
## [3,] -0.4320207 -0.005864442 -0.25699093 0.01473842
```

* High absolute values indicate a strong contribution of that feature to the component.
* Since ICA seeks **statistical independence**, these do not correspond to variance directions (as in PCA).

---
## Summary

- ICA separates signals into **independent sources**

- Useful for **unsupervised discovery** of biological modules

- Complements PCA by uncovering **non-Gaussian, hidden structure**

- Applications: transcriptomics, epigenomics, imaging, and multi-omics data integration
